Umbrella Wind Ratings Explained

In the world of wind rated commercial umbrellas, understanding wind ratings is essential for selecting the right product that ensures safety and durability. Wind ratings are crucial guides that help you understand how an umbrella will perform under various wind conditions. This article explores wind ratings, measurement scales, and how they apply to different types of commercial umbrellas.

Enquire Now

How Wind Is Measured

Wind Speed Measurement:
- Anemometers: These instruments measure wind speed. There are several types, including:
  - Cup Anemometers: Comprising three or four cups that rotate in the wind, the speed of rotation is proportional to wind speed.
  - Vane Anemometers: Using a fan or propeller, these measure wind speed based on the rate of rotation.
  - Hot-Wire Anemometers: Using a heated wire cooled by the wind, they detect wind speed through temperature changes.
  - Ultrasonic Anemometers: These utilize the speed of sound in air to measure wind speed by transmitting ultrasonic pulses between transducers.
- Wind Speed Units: Wind speed can be measured in various units, including kilometers per hour (km/h) or meters per second (m/s).
Wind Direction Measurement:
- Wind Vanes: Also known as weather vanes, these instruments show wind direction. They consist of a rotating arm that aligns with the wind, pointing towards the direction from which the wind is blowing.
- Ultrasonic Wind Sensors: Some modern ultrasonic anemometers also measure wind direction by analyzing the time it takes for sound waves to travel between transducers in different orientations.

Scales Used to Describe Wind

Beaufort Scale: A 13-level scale that relates wind speed to observed conditions at sea or on land. It ranges from 0 (calm) to 12 (hurricane
Saffir-Simpson Hurricane Scale: Specifically designed to describe hurricanes, categorizing wind speeds into five different categories.
Engineer Wind Rating (EWR): Engineers often use a specific rating scale – such as W33 – based on wind speed in meters per second (W33 = 33 metres per second = 118km/h). This categorization is used for structural assessment, design specifications, and compliance with building codes.
Australian Bureau of Meteorology (BOM) Scale: In Australia, the BOM also utilizes a range of scales to categorize wind speeds, which include references to the Beaufort scale and the descriptive terms used to denote wind intensity.

Common Types of Commercial Umbrellas and Their Wind Ratings

Market Umbrellas

Good quality commercial-grade market umbrellas will typically have a wind rating of 50km/h or more. The wind rating usually presumes that the umbrella is installed in or fixed to the ground. If used on a moveable base, the size of the base (footprint) and the gross weight of the base will greatly impact the wind rating of the umbrella.

Cantilever Umbrellas

There are many cantilever umbrellas on the market but not that many are commercial-grade. A good quality commercial-grade cantilever umbrella will typically have a wind rating of 50km/h or more. The wind rating usually presumes that the umbrella is installed in or fixed to the ground. If used on a moveable base, the size of the base (footprint) and the gross weight of the base will greatly impact the wind rating of the umbrella. Due to the cantilever design a very large and heavy base will be required to achieve a reasonable level of wind resistance. The umbrella itself will also be quite heavy. For this reason, commercial cantilever umbrellas are best suited to settings where the umbrella can be left in place all the time, rather than having to be carried inside at end of trading.

Heavy Duty Umbrellas

Heavy duty umbrellas are usually characterised by the following:

giant canopy sizes (4m x 4m Square or more)
high wind rating (at least 80km/h)
ability to easily open and close (retractable)
installation options and methods that allow the umbrella to be removed if required

The wind rating usually presumes that the umbrella is installed in or fixed to the ground. Due to the large size and heavy constrcution of these umbrellas, it is rare that they would be used on moveable bases. If they are a very large and heavy base will be required to achieve a reasonable level of wind resistance. They are best suited to settings where the umbrella can be left in place all the time, rather than having to be carried inside at end of trading (they are too heavy for this).

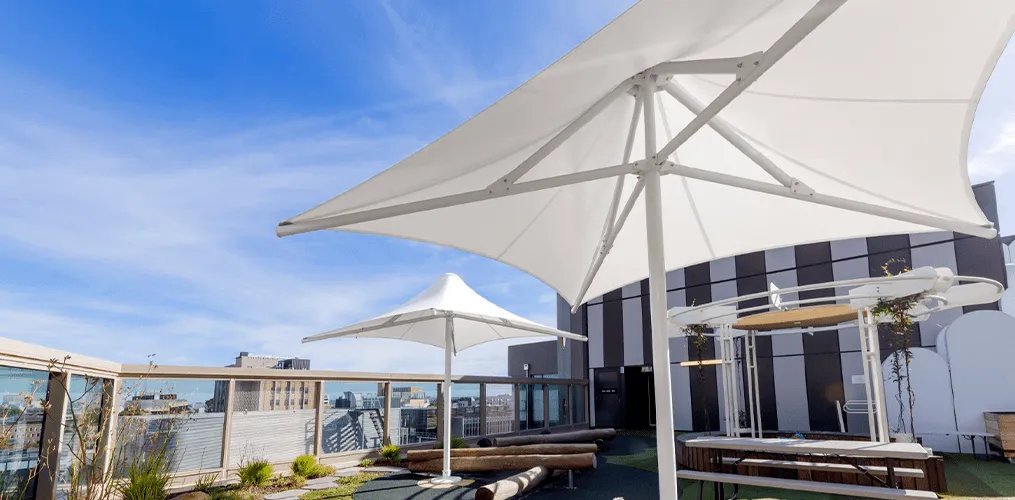

Permanent Umbrella Structures

Permanent umbrella structures are usually characterised by the following:

wide range of sizes available – including giant sizes (4m x 4m Square or more)
custom sizing also available
tension membrane canopy
very high engineer wind rating (EWR) – at least W33 (118km/h)
permanent installation that cannot be removed

The wind rating is based on the structure being installed in the ground in accordance with detailed engineering requirements. Concrete footing sizes are usually quite substantial.

Assessing Wind Resistance: Engineering Wind Rating vs. Wind Tunnel Testing

Understanding how an umbrella can withstand wind forces is a critical aspect of its design and function. There are two primary methods of evaluating the wind resistance of umbrella products: engineer wind rating and wind tunnel testing.

Engineer Wind Rating

Engineer wind rating is a method where structural engineers assess the design and materials of the umbrella. This includes evaluating:

Materials: Analyzing the strength and durability of the materials used in the frame, canopy, and other components.
Design: Studying the aerodynamics and structural integrity of the design to determine how it will perform under different wind conditions.
Location: Taking into account the geographical location and prevalent wind conditions where the umbrella will be installed.
Standards Compliance: Ensuring that the product complies with the relevant Australian Standards, which set guidelines for performance under specific wind conditions.

Wind Tunnel Testing

Wind tunnel testing involves placing a model or actual product in a wind tunnel to simulate real-world wind conditions. This method provides:

Realistic Simulation: Wind tunnel tests can create controlled wind conditions that mirror real-world scenarios, giving precise data on how the umbrella will perform.
Dynamic Analysis: By observing the umbrella under various wind speeds and directions, manufacturers can assess its dynamic behavior, stability, and overall performance.
Continuous Improvement: The data obtained from wind tunnel testing allows designers to continually refine and improve products for optimum wind resistance.

Conclusion

Choosing the right commercial umbrella requires a good understanding of wind ratings. Assessing factors such as the location’s typical wind conditions and selecting an umbrella with the appropriate wind rating ensures the longevity of the product and the safety of those using it.

It’s important to consult with a knowledgeable expert that can guide you in making the right choice based on your specific requirements.
